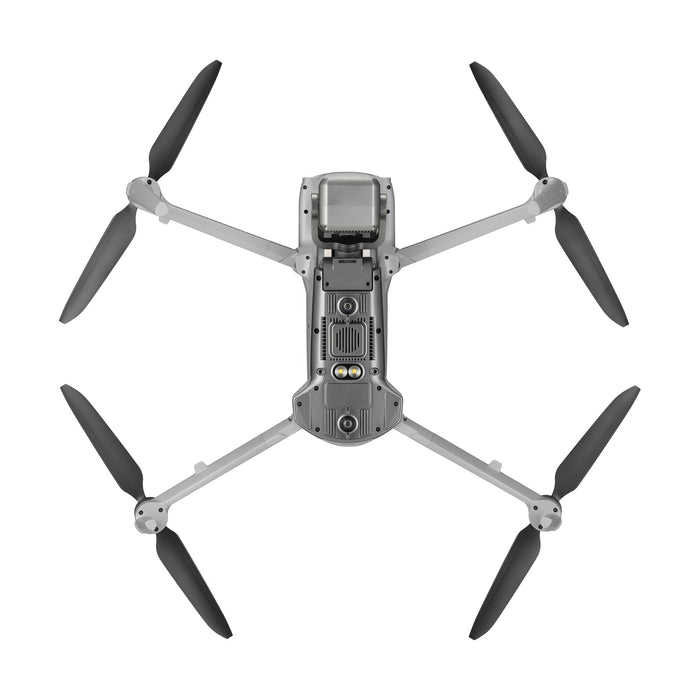

Autel EVO Max 4N – Rugged Industrial Drone
Questions? Call Us
Unmatched intelligence, night vision excellence, and end-to-end mission control.
The EVO Max 4N is engineered for high-stakes professional operations—public safety, inspections, search & rescue, and industrial surveying. Featuring a starlight-sensitive camera, dual thermal imaging, laser rangefinder, ultra-precise RTK, all-weather resilience, and full 720° obstacle detection, it delivers top reliability and performance.
🔍 Key Features
-
Starlight Night-Vision Camera: Captures in near-total darkness (0.0001 lux, ISO up to 450,000)
-
50 MP Wide-Angle Visual Camera: 1/1.28″ sensor with f/1.9 aperture and 85° FOV for crisp 4K footage
-
Radiometric Thermal Imaging (640×512): 13 mm lens with 16× digital zoom, temperature measurement from -20°C to 150°C
-
Laser Rangefinder: Measures targets from 5 m to 1.2 km with ±1 m accuracy
-
Dual-Antenna RTK & A-Mesh 1.0 Networking: Ensures cm-level positioning accuracy and resilient team flight coordination
-
Autonomous Pathfinding & GPS-Denied Navigation: Navigate complex terrain with 3D flight planning and SLAM assistance
-
720° Omnidirectional Obstacle Avoidance: Combines vision, radar, SLAM, and lidar-grade detection to eliminate blind spots
-
SkyLink 3.0 Transmission (up to 12.4 mi): Multi-band encrypted low-latency video link (<150 ms)
-
40 min Flight Time & 27 mph Wind Resistance: Wide operational window with extended endurance
-

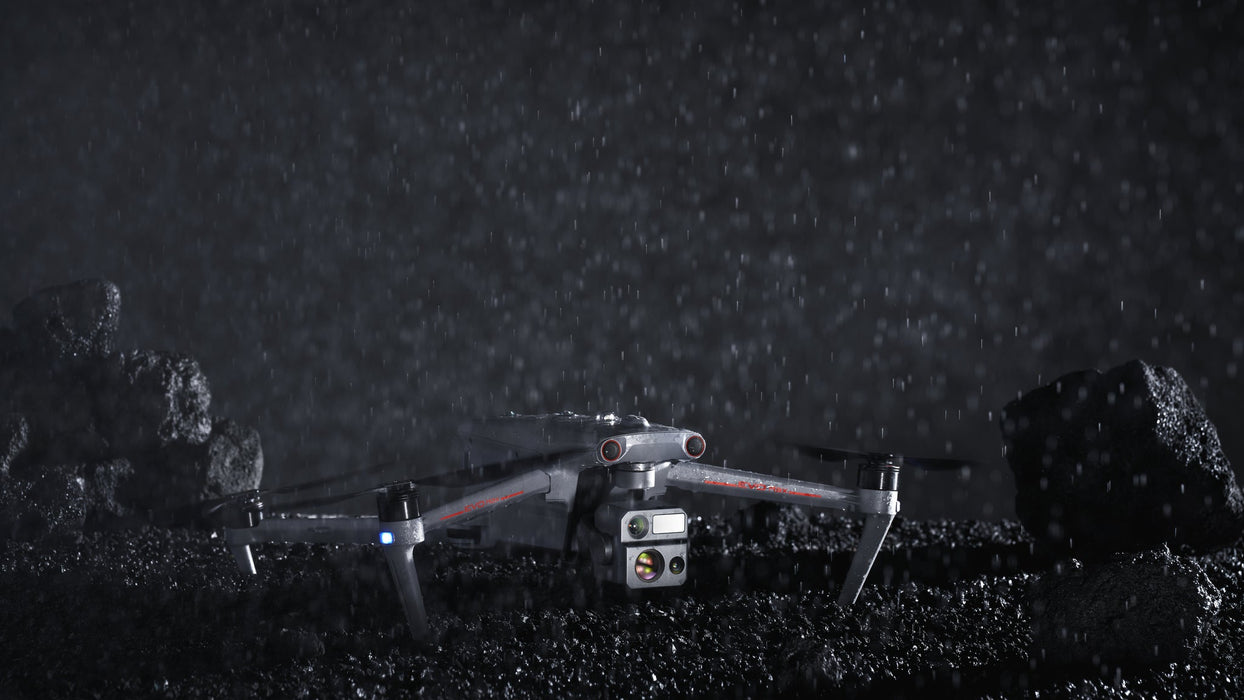

IP43 Weather Protection & -20°C to +50°C Range: Built for rugged all-weather reliability
-
Hot-Swappable Batteries: Maintain continuous uptime during long missions
⚙️ Technical Specifications
| Specification | Detail |
|---|---|
| Drone Weight (w/ gimbal + battery) | ~1.6 kg (3.5 lb) |
| Max Takeoff Weight | ~1.99 kg (4.41 lb) |

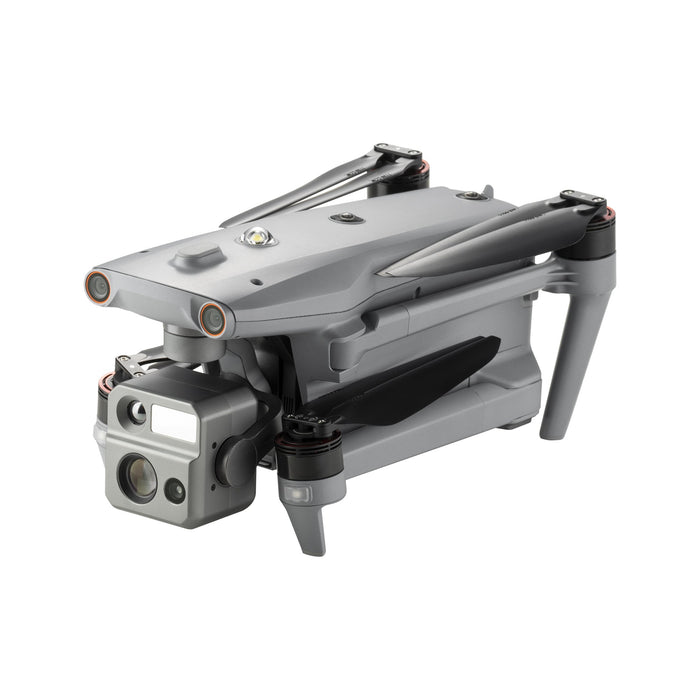

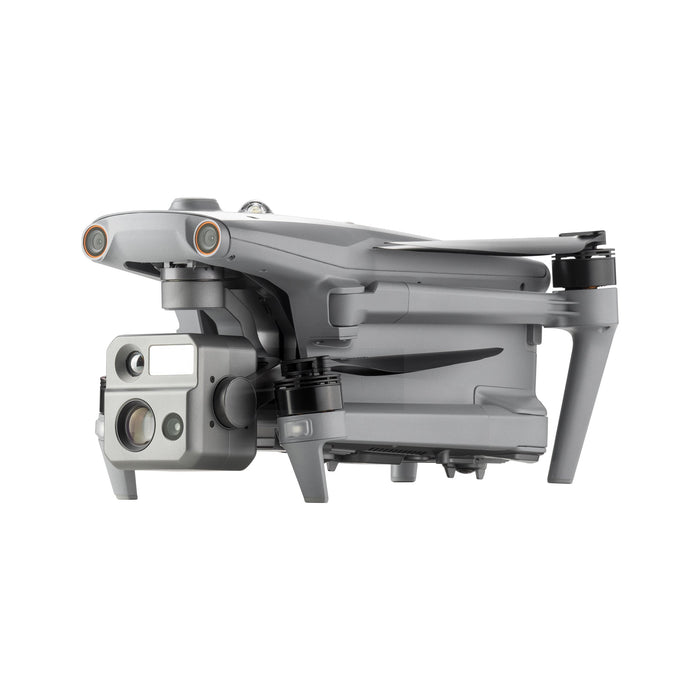

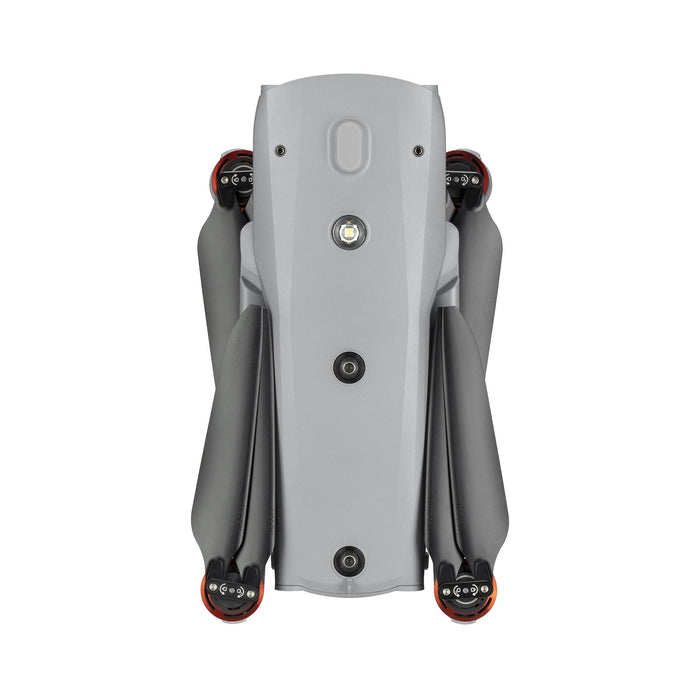

| Folded Dimensions | 576 × 660 × 149 mm |
| Max Flight Time | ~42 min (hover ~38 min) |
| Max Speed | 23 m/s (~82 km/h) |
| Max Wind Resistance | ~12 m/s (27 mph) |
| Max Altitude | 7,000 m (23,000 ft) |
| Obstacle Avoidance | 720° SLAM, radar, vision |
| Transmission Range | Up to 20 km FCC / 8 km CE |
| Operating Temp Range | -20°C to +50°C |
| Ingress Protection | Rated IP43 |
✅ Ideal For...
-
Search & Rescue / Public Safety
-
Industrial & Utility Inspections (power lines, solar, pipelines)
-
Infrastructure & Bridge Surveys
-
Emergency Response & Tactical Reconnaissance
-
Environmental Monitoring & Mapping
-
Security Operations & Perimeter Patrol

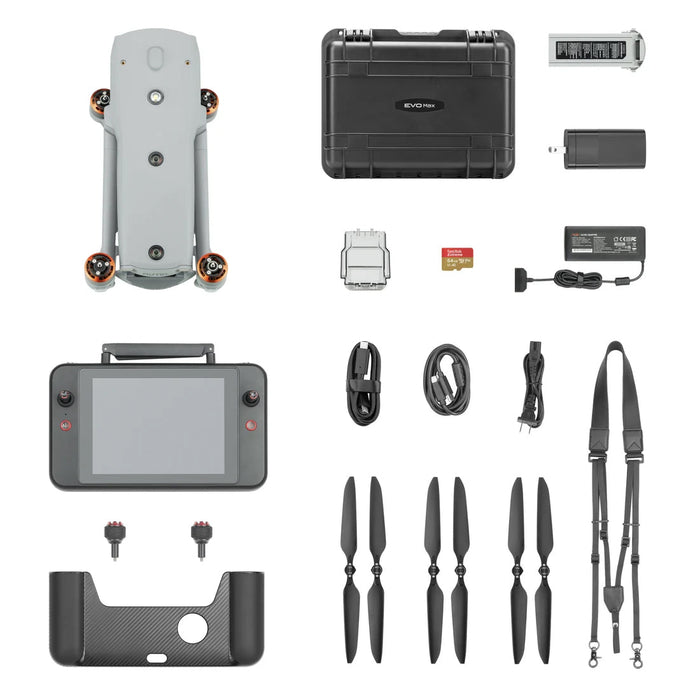

📦 What’s in the Box
-
1 × Autel EVO Max 4N Aircraft with DG-L3XX Gimbal
-
2 × Intelligent Flight Batteries (hot-swappable)
-
1 × Smart Controller V3
-
Charger, power cables, extra propellers, tool kit
-
Rugged Carrying Case + Quick Start Guide & Manual
